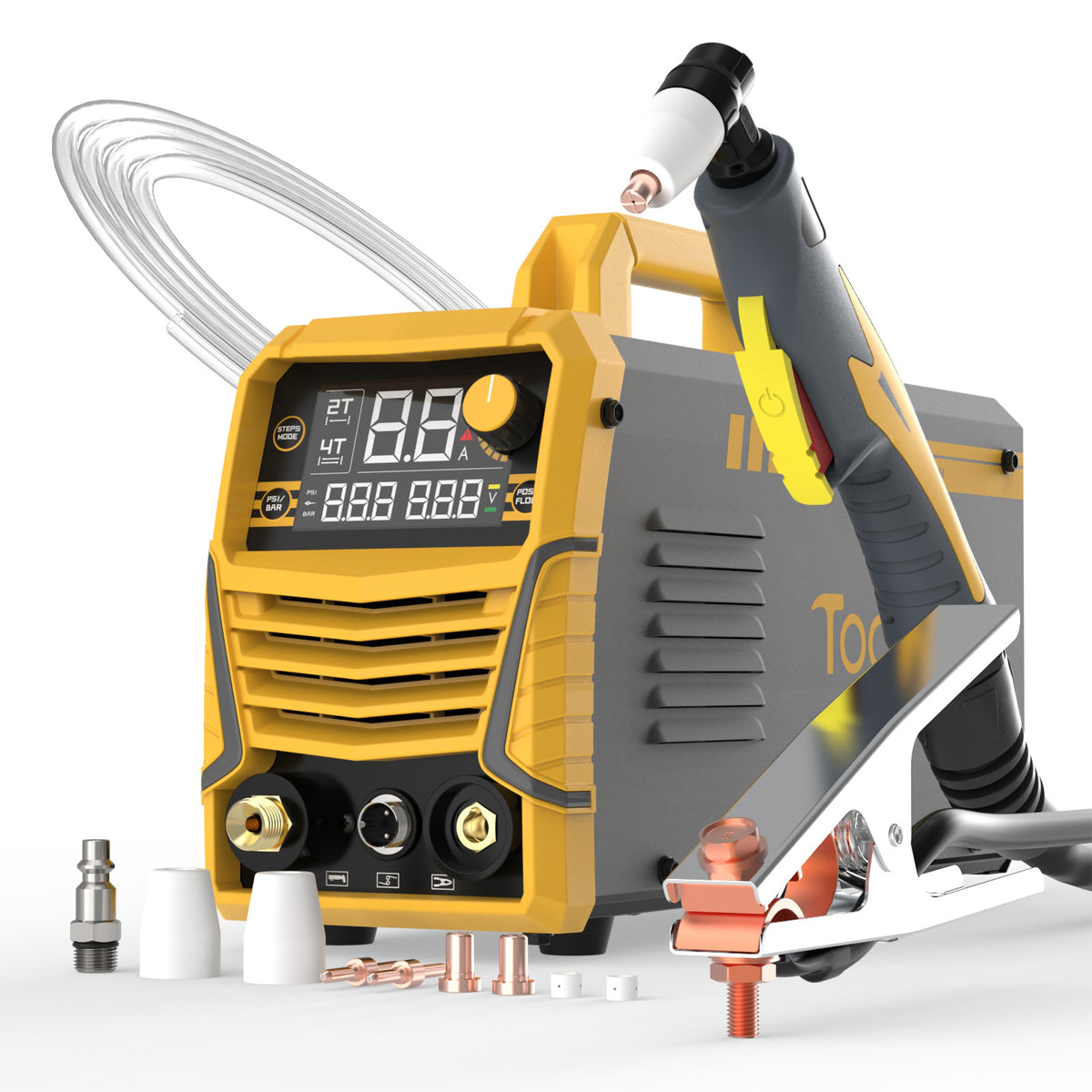

TOOLIOM TL-CUT-50 50A Plasma Cutter, 110/220V Dual Voltage IGBT Air Plasma Cutting Machine with Large LCD Display

The TOOLIOM 50A Plasma Cutter is a dual-voltage air plasma cutting machine built for clean, efficient metal cutting. Featuring advanced IGBT inverter technology, a large LCD display, built-in air sensing and regulation, and convenient 2T/4T cutting modes, it is a practical choice for garage projects, repair work, fabrication, and workshop use.

Clean Cutting Performance on 110V and 220V

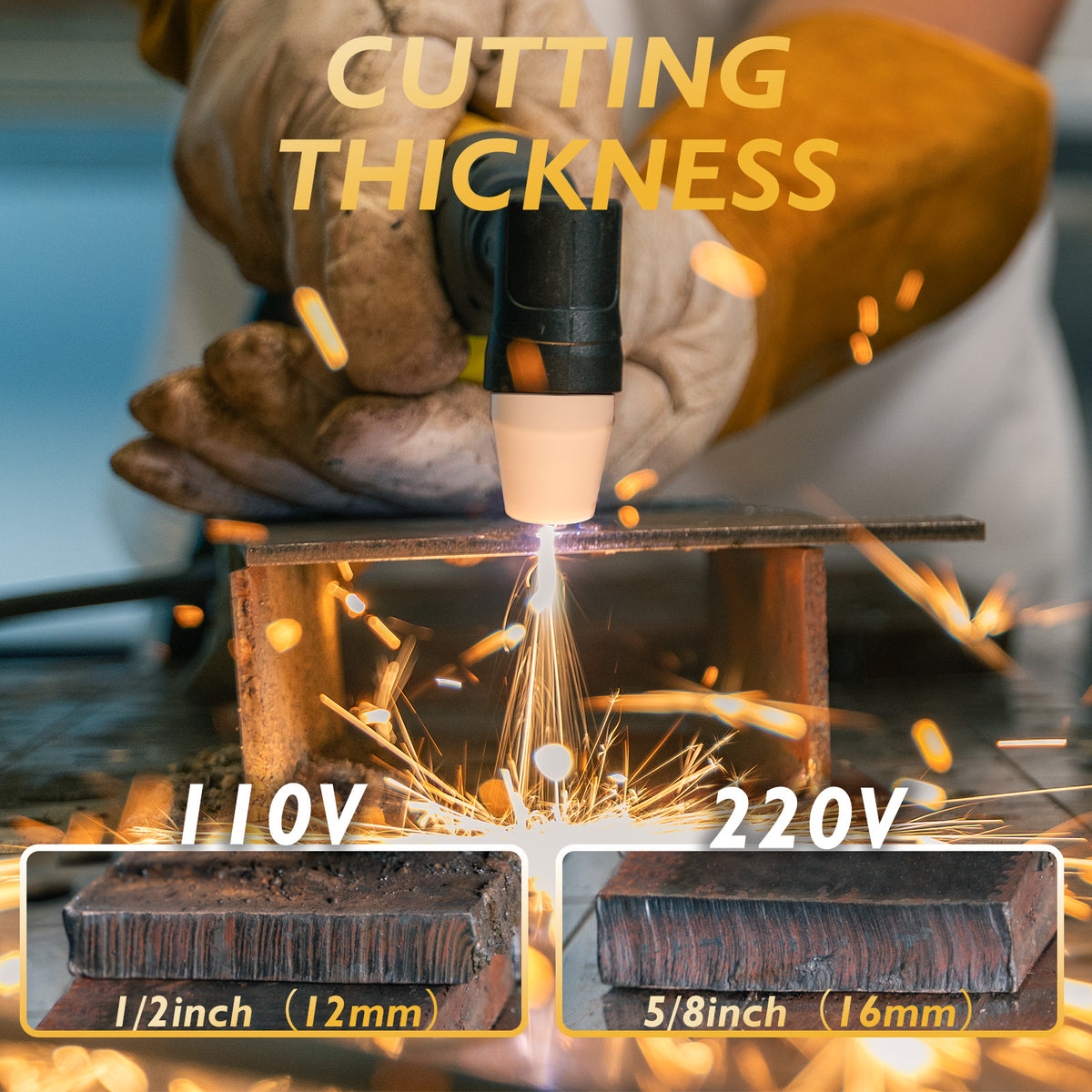

This 50A plasma cutter uses advanced IGBT inverter technology to deliver stable and reliable cutting performance. It provides different cutting capacity depending on the input voltage.

• 110V Input: Clean cut up to 5/16 in. (8 mm); maximum cutting capacity up to 1/2 in. (12 mm).
• 220V Input: Clean cut up to 1/2 in. (12 mm); maximum cutting capacity up to 5/8 in. (16 mm).

For the best cut quality, select the appropriate input voltage, air pressure, cutting speed, and consumables for the material being cut.

Large LCD Display with Error Code System

The large LCD display centrally shows important operating information, including air pressure, voltage, current, and other key parameters. This makes it easier to monitor the machine in real time and make timely adjustments during cutting.

If the machine detects a fault that prevents normal operation, the display provides an error code to help identify the issue more quickly.

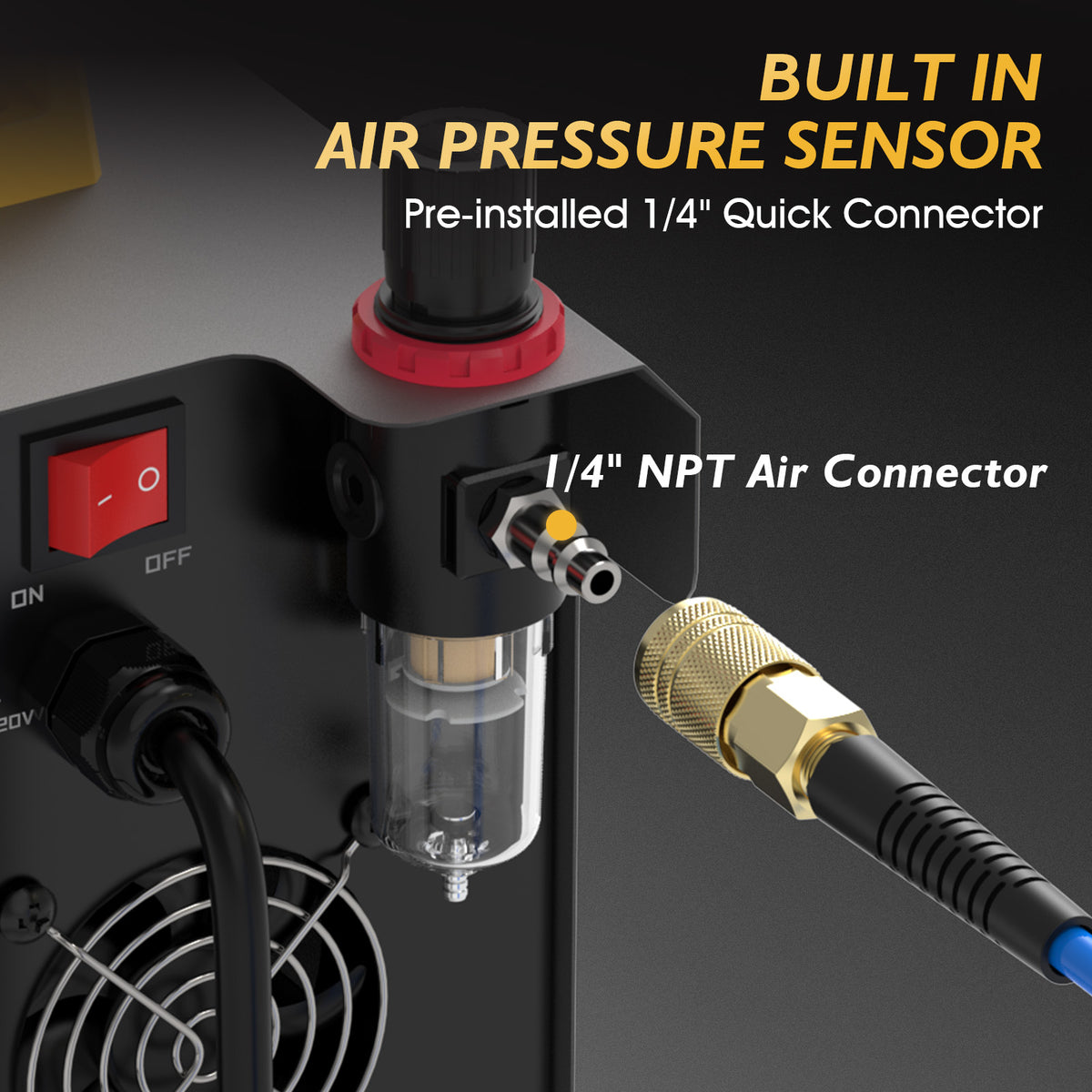

Built-In Air Sensor and Air Regulator

The integrated air sensor displays air pressure directly on the front panel, helping you monitor the air supply during operation. The rear of the machine includes a quick-connect 1/4 in. NPT air connector, air filter fitting, and built-in regulator for a more convenient air setup.

Recommended Air Pressure

• 110V Input: Recommended air pressure of 60 PSI (0.41 MPa).
• 220V Input: Recommended air pressure of 65 PSI (0.45 MPa).

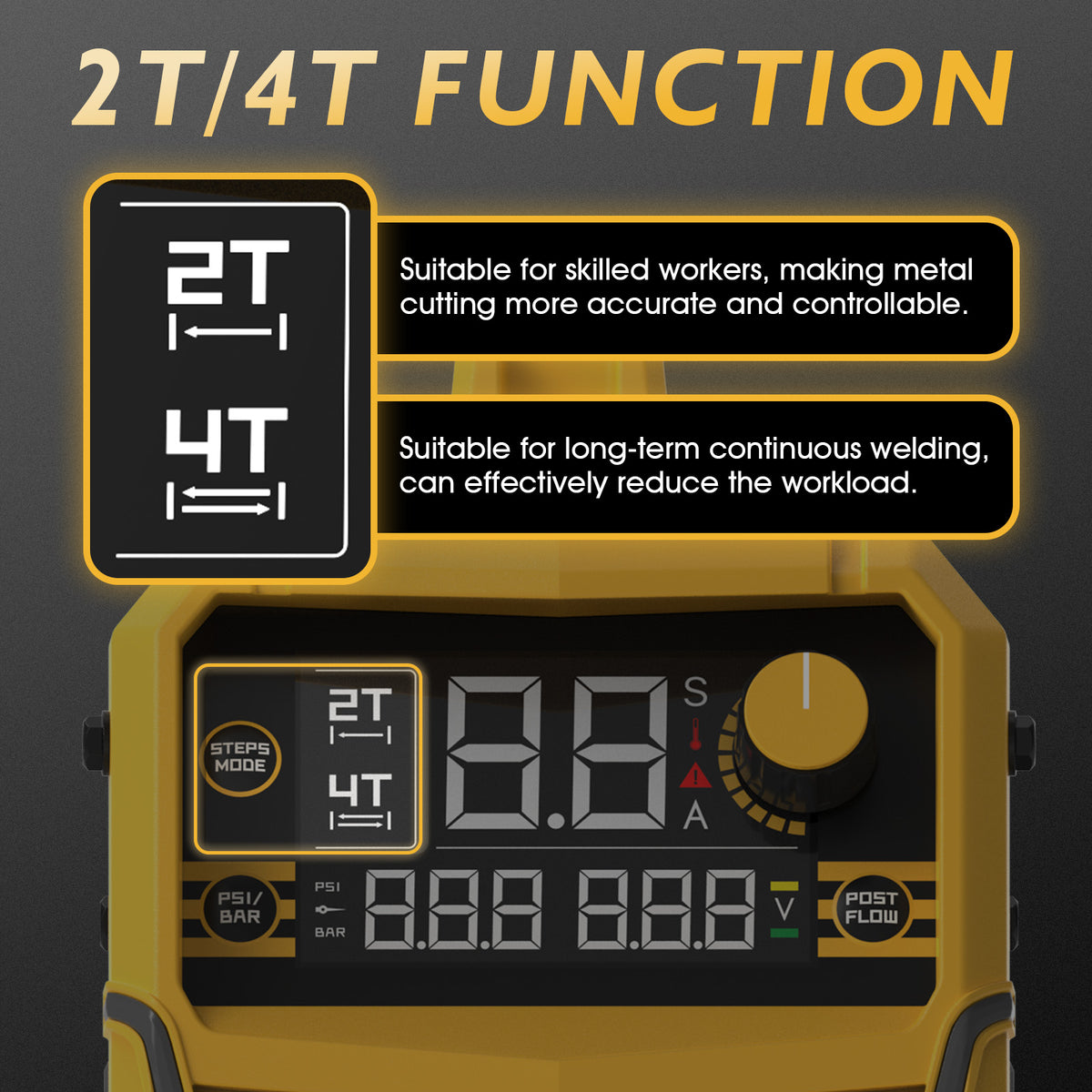

2T/4T Cutting Modes and Adjustable Post-Flow

Choose between 2T and 4T trigger modes to match your cutting task:

• 2T Mode: Press and hold the torch trigger while cutting for semi-automatic control.
• 4T Mode: Use automatic cutting control to reduce the need to continuously hold the trigger during longer cuts.

The adjustable post-flow time ranges from 5 to 20 seconds. Post-flow cooling helps cool the plasma torch after cutting and can help extend the service life of torch consumables.

Key Features

• 50A air plasma cutter with 110V/220V dual-voltage input
• Advanced IGBT inverter technology
• Clean cutting capacity up to 1/2 in. (12 mm) at 220V
• Maximum cutting capacity up to 5/8 in. (16 mm) at 220V
• Large LCD display for air pressure, voltage, current, and machine status
• Error code system for convenient fault identification
• Built-in air sensor with front-panel air pressure display

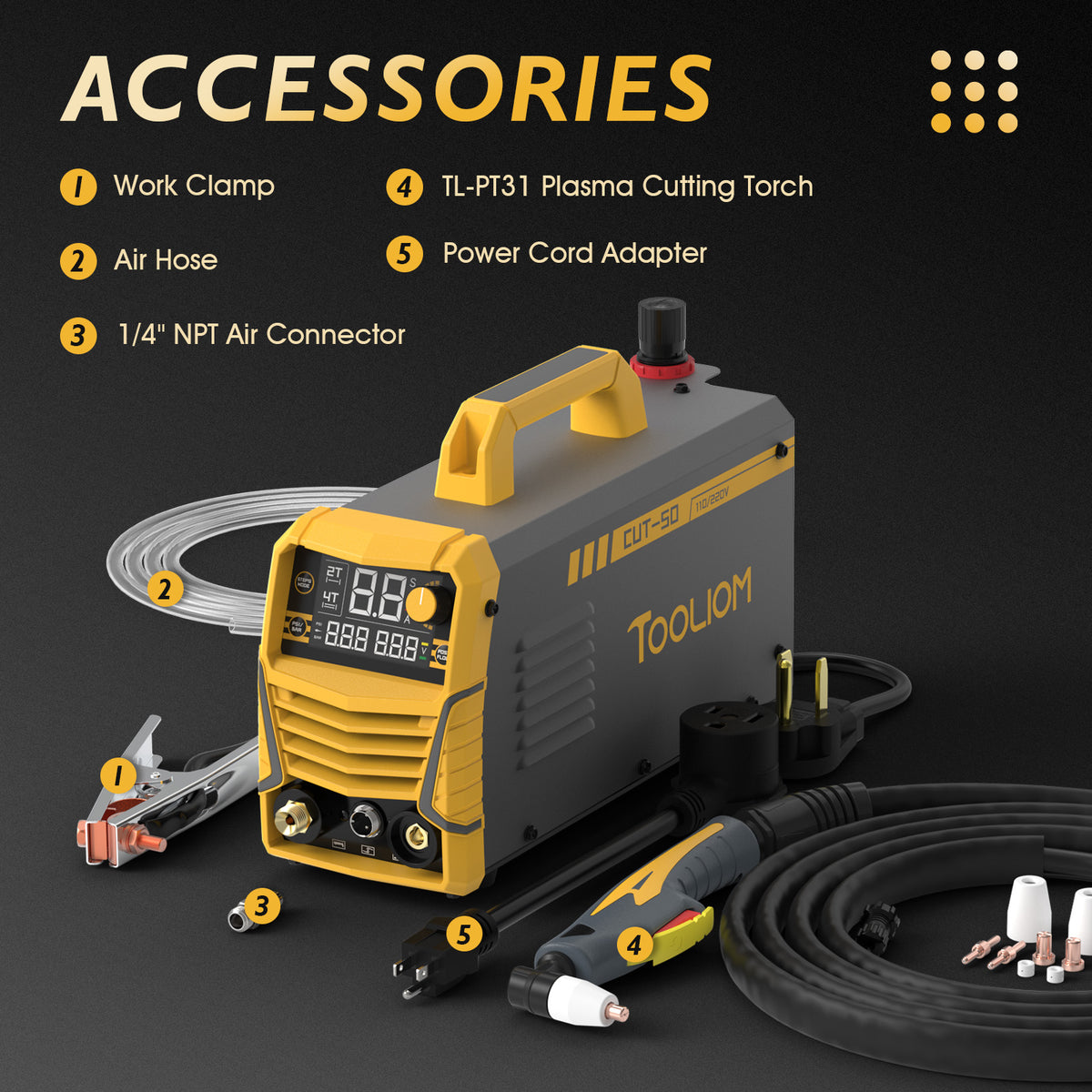

• Built-in air regulator, air filter fitting, and 1/4 in. NPT quick-connect air connector
• 2T and 4T torch trigger modes
• Adjustable 5 to 20 second post-flow time

Specifications
