Tooliom

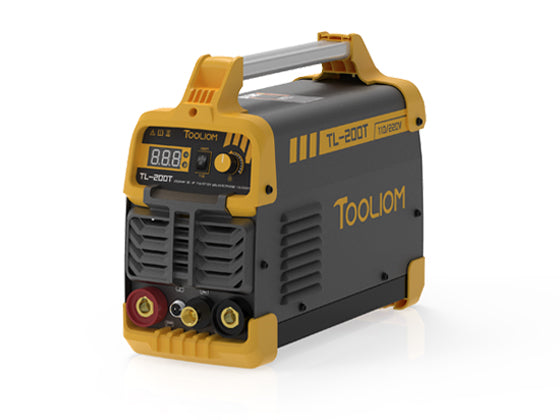

TIG/Stick High Frequency Dual Voltage TL-200T 2 in 1 Welding Machine

TIG/Stick High Frequency Dual Voltage TL-200T 2 in 1 Welding Machine

Regular price $309.99
Regular price Sale price $309.99
Sale Sold out
Shipping calculated at checkout.

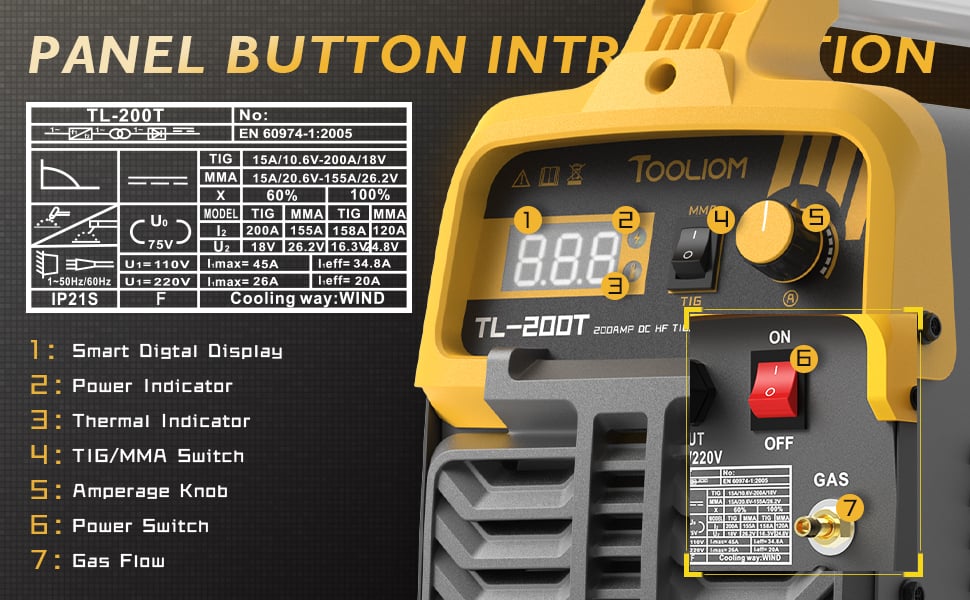

SPECIFICATION

· Input Voltage:110(120)V/220(230)V

· Input Current:34.8A (110V)/20A(220V)

· Duty Cycle:60%

· Insulation Class:F

· Output Voltage:18V

· Output Current:200A

· Weight: 13.42LB (6.1KG)

· Protection Class: IP21S

HIGHLIGHT FEATURES

1. HF Start Control: Easy ar cstarting and simple to operate.

2. Hot Start: easy arc start, stable current, capacity of E7018 electrode stick welding

3. Variety Material: suitable for steel/stainless steel/carbon/iron.

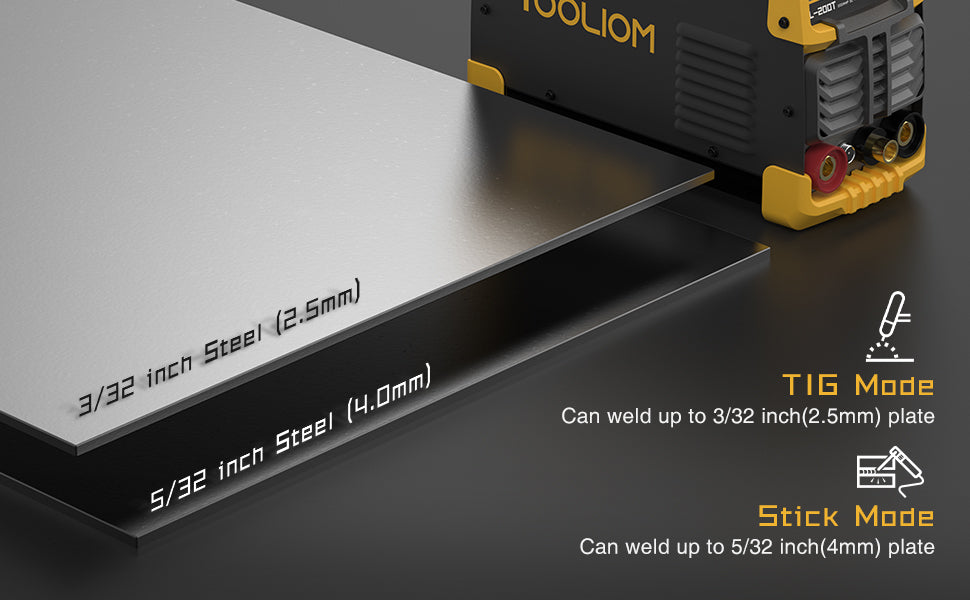

4. 200Amp Current: 15amp up to 200Amp current, suitable for both thin and thick workpiece, welding up to 5/32” (4.0mm) plate

5. Dual Voltage Design: Suitable for household and industrial use at 110V/220V.

SHIPPING & RETURNS & WARRANTY

Free return and replace within 30 days. We make sure you have enough time to explore the machine.

The average shipping time is 5 days.

We have warehouses located in southern California and northern Kentucky to manage all shipping and returns.

We cover all quality-related issues in two years and provide lifetime technical support for other problems

For orders made on Tooliom website only.

support@tooliom.com

View full details

TIG TL-200T

This TOOLIOM 200AHigh FrequencyTIG Welder has advanced features yet easy to use .The versatility of a unit that runsDC TIG weldingandStick Weldingis definitely a surprise.The digital display and automation are very user-friendly. You can use the machines presets or make adjustments to fine-tune the unit’s performance to match your preferences. Either way, you’ll get smooth and precise welding with enough power to handle a wide range of tasks.

  • MULT-FUNCTIONS

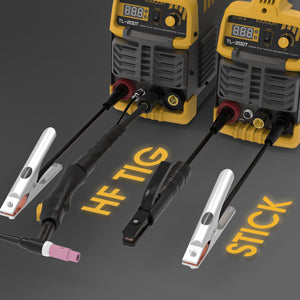

    · 2 Functions in 1, suitable for HF TIG/Stick.

    · The use of high frequency start in TIG welding is considered by many operators to be the most popular and best option due to its cleanliness and efficacy.

    · It makes the time between tungsten sharpening longer.

    · Capability for DC Welding and Stick Welding(can't weld aluminum)

    · Easy arc ignition, litter spattering, stable current and good shaping

  • TIG Torch

    · Make sure the machina is turned off and unplugged.

    · Remove the back cap from the torch.

    · If there is a tungsten installed in the torch pull it out of the front of thr torch.

    · Slide the collet out of the torch.

    · Unscrew and remove the gas nozzle.

    · Unscrew and remove the collet body.

  • Multi-functions

    · Capability for DC Welding and Stick Welding(can't weld aluminum)

    · Easy arc ignition, litter spattering, stable current and good shaping

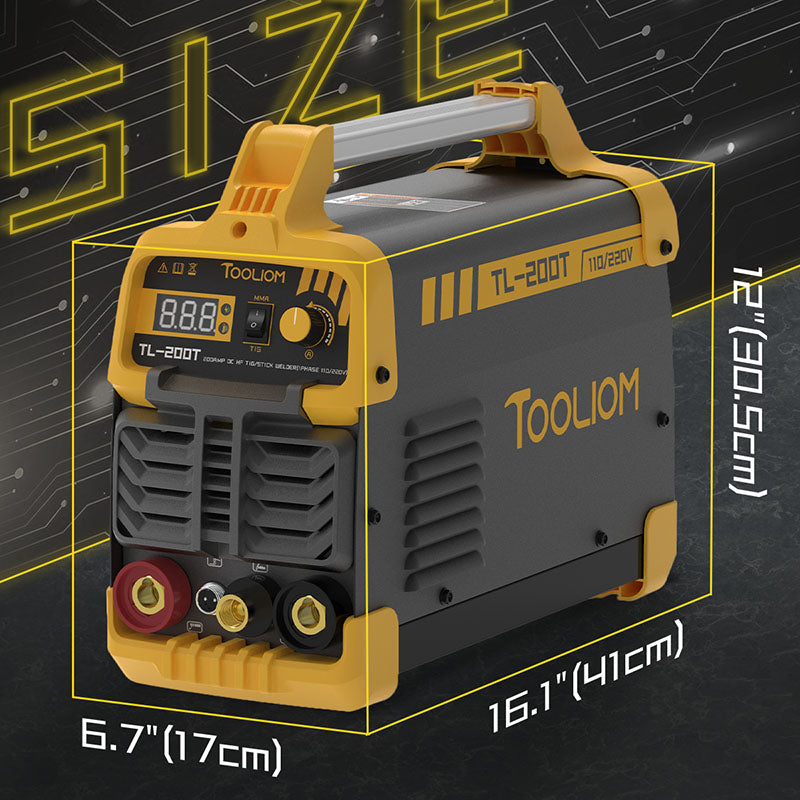

  • Portable and Lightweight

    · Net weight: 13.42lb/6.1kg

    · Comes with a modern hand grip,making it easy for you to carry anywhere you want.

  • Connection

    · Stick:Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder.(DCEP)

    · TIG:Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.(DCEN)

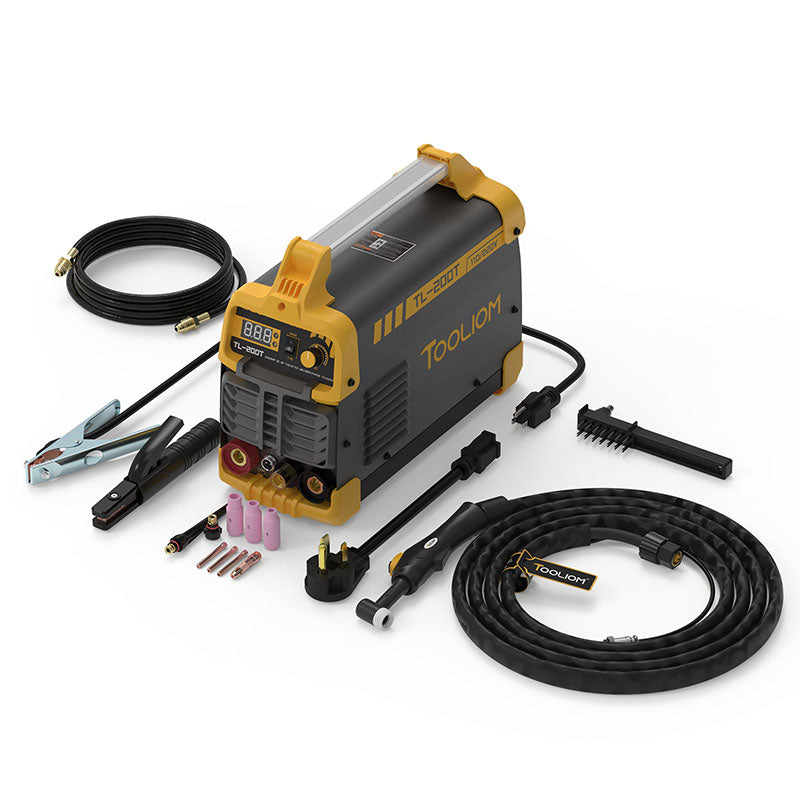

  • Package Included

    · 1*TL-200T TIG Welder

    · 1*Shielding Gas Hose

    · 1*Ground Cable with Clamp(10')

    · 1*WP#17 TIG Torch(14')

    · 1*Electrode(Stick) Holder(10')

    · 1*Instruction Manual
