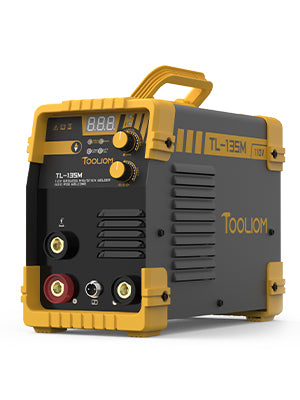

MIG/Stick/TIG Multi-Process Welder TL-135M 3 in 1 IGBT DC Inverter

MIG/Stick/TIG Multi-Process Welder TL-135M 3 in 1 IGBT DC Inverter

Regular price $219.99
Regular price Sale price $219.99
Sale Sold out
Shipping calculated at checkout.

SPECIFICATION

· Input Voltage: 110V / 220V

· Input Current: 19.3A

· Duty Cycle: 60%(135A) 100%(104A)

· Insulation Class: F

· Output Voltage:20.7V

· Output Current:135A

· Protection Class: IP21S

· Application: Flux MIG/Stick/Lift TIG(need buy extra tig lift torch)

HIGHLIGHT FEATURES

1. Powered by standard 110(120)V household current.

2. Up to 135A output current that can weld mild steel up to 1/8 inch (3.0mm) plate.

3. Weld voltage micro-adjust from -5 to +5 (Low to high, -1.5V to +1.5V).

4. Equipped with a smart digital display, read the output welding current.

5. 2T Operation, suitable for spot welding and simple work.

6. Come with a safety feature that the welding machine is automatically protected when it is too hot or the volt and current exceed their range.

7. Weld up to .030"(0.8mm) and .035" (0.9mm)with flux core wire.Can Handle E7018 basic electrode.

8. Multi-functions in one machine: Suitable for MMA, Lift TIG, Flux MIG. Can weld stainless steel and carbon steel.

9. Big enough to handle 2 pounds rolls of wire.

SHIPPING & RETURNS & WARRANTY

Free return and replace within 30 days. We make sure you have enough time to explore the machine.

The average shipping time is 5 days.

We have warehouses located in southern California and northern Kentucky to manage all shipping and returns.

We cover all quality-related issues in two years and provide lifetime technical support for other problems

For orders made on Tooliom website only.

support@tooliom.com

View full details

MIG TL-135M

· Powered by standard 110(120)V household current.

· Suitable for MMA,Lift Tig,Flux Mig.

· Weld voltage micro adjust from -5 to +5 (Low to high,-1.5V to +1.5V).

· Equipped with smart digtal display,read the output welding current.

· Come with a safety feature that the welding machine is automatically protect when it it too hot or the volt and current exceed their range.

· Lift tig is optional(need buy extra tig lift torch,not included inside product)

  • 3 Functions in 1

    · Multi-functions in one machine,suitable for Stick,Lift TIG,Flux MIG,best choice for steel works.

  • MIG Gun

    · Ready to feed .030" and .035" diameter welding wire.

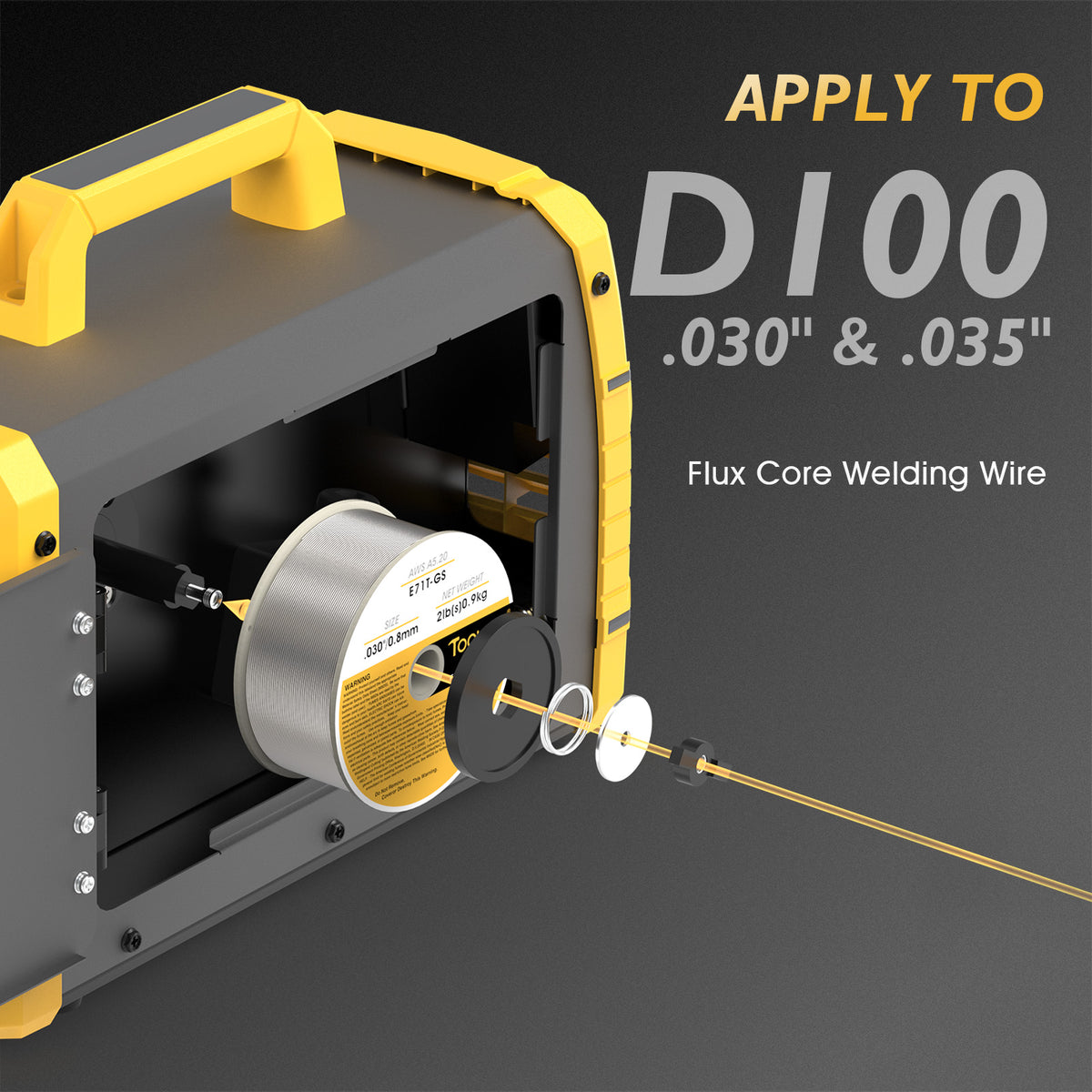

  • INNER WIRE FEEDER

    · Apply to D100(4" diameter) rolls of MIG wire.

    · Weld up to .030"(0.8mm) and .035" (0.9mm)with flux core wire.

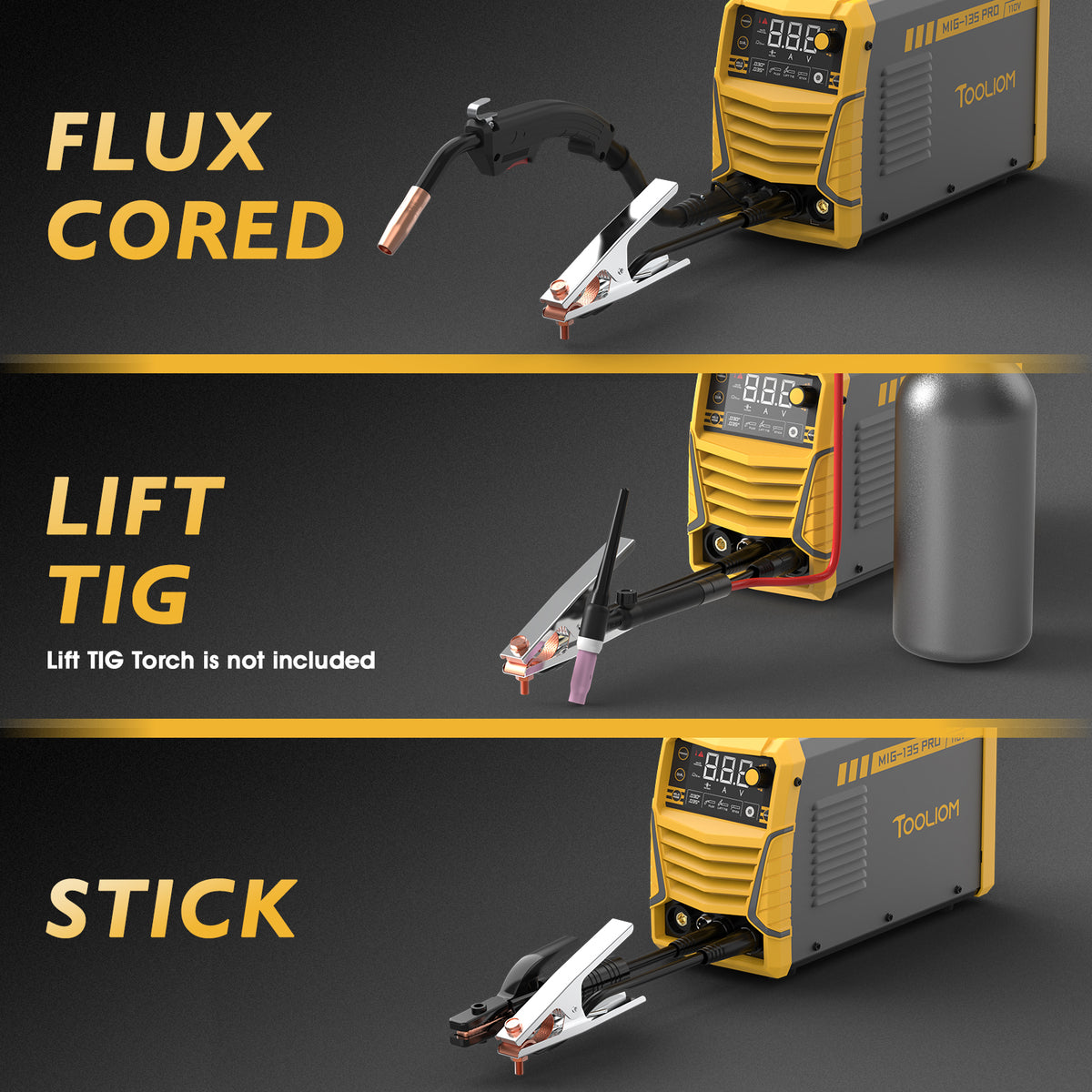

  • Flux MIG

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.

  • Lift TIG

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.

    · Lift tig is optional(need buy extra tig lift torch,not included inside product)

  • MMA

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder.

  • Max. Welding Thickness

    · Can weld up 1/8 inch (3mm) plate using

    · 0.30"(0.8mm)/.035"(0.9mm) flux core wireCan Handle E7018 basic electrode.

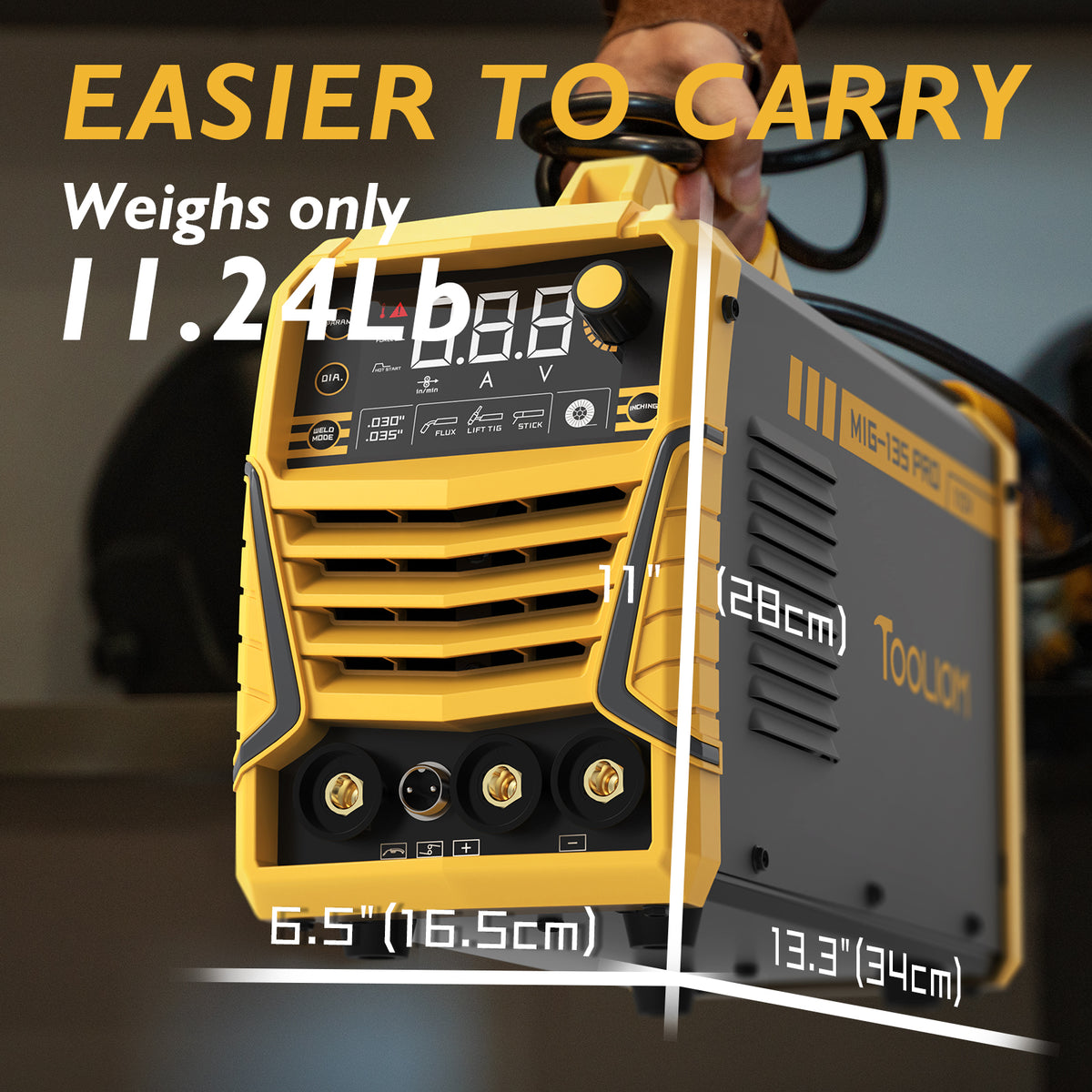

  • SIZE

    · This welding machine equipped with a easy carrying handle,compact design, easy for translation and storage. Very convenient, can be used anywhere you need.

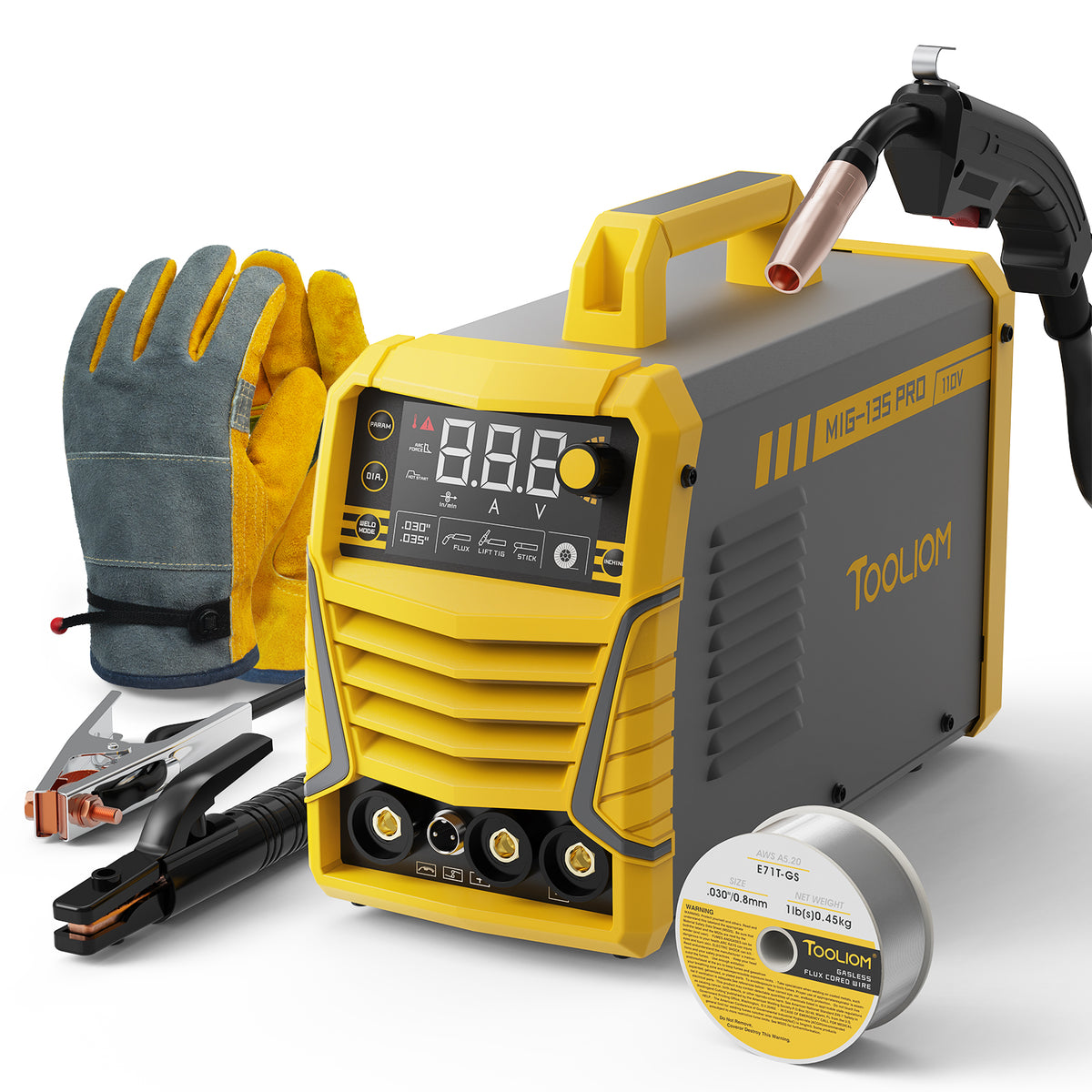

  • Package Included

    · 1*TL-135M Welder

    · 1*MIG Gun

    · 1*Electrode holder (10ft.)

    · 1*Ground clamp (10ft.)

    · 2*Contact Tips
