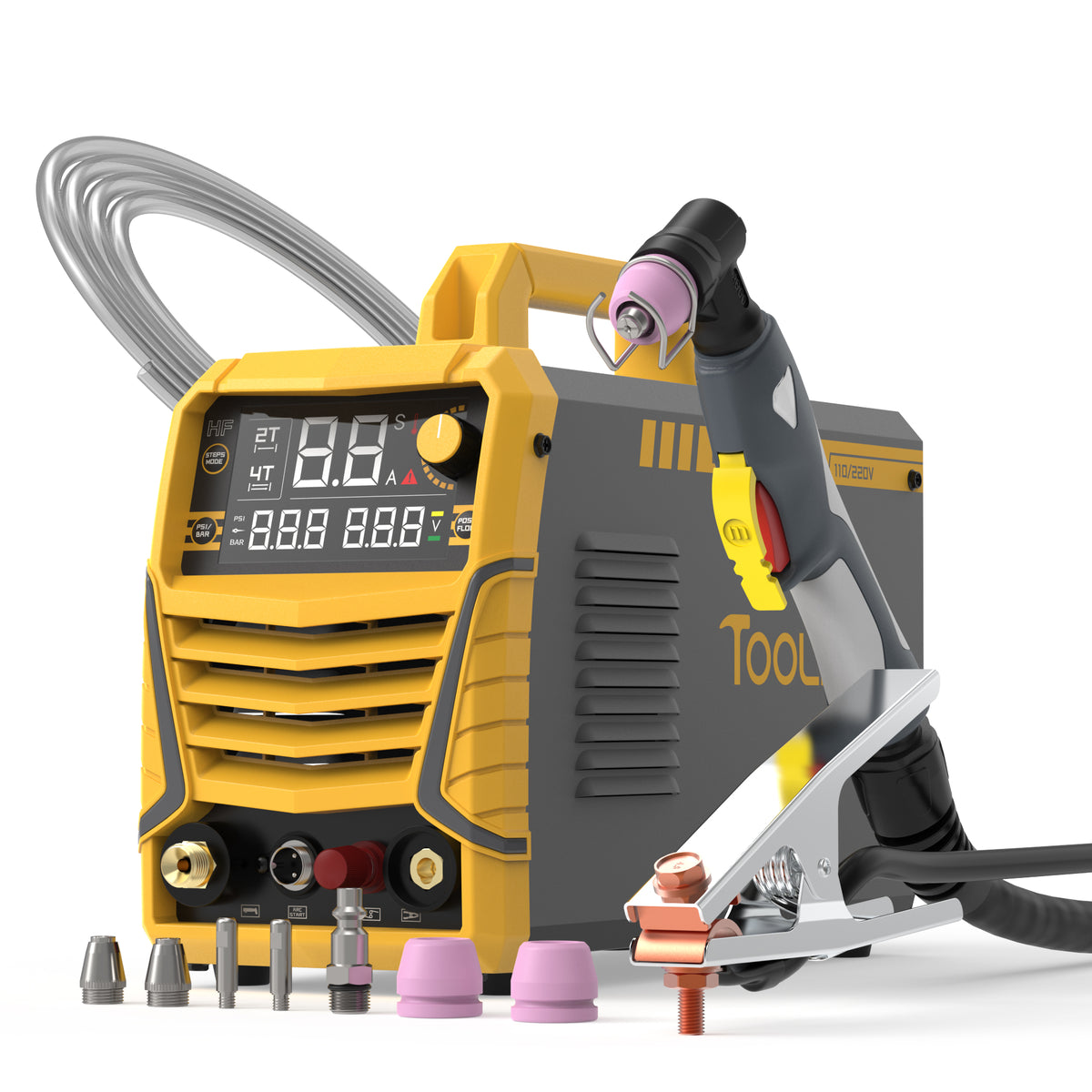

TOOLIOM TL-CUT-50-PRO 50A Plasma Cutter, 110/220V Dual Voltage IGBT Air Plasma Cutting Machine with Large LCD Display

The TOOLIOM TL-CUT-50-PRO is a 50A dual-voltage air plasma cutter designed for clean, efficient metal cutting. With advanced IGBT inverter technology, a large LCD display, built-in air sensing and regulation, and flexible 2T/4T trigger modes, it is a practical choice for metal repair, fabrication, garage projects, and workshop cutting tasks.

Clean Cutting Performance on 110V and 220V

The TL-CUT-50-PRO uses advanced IGBT inverter technology to provide stable cutting performance on both 110V and 220V power input.

• 110V Input: Ideal clean cut up to 5/16 in. (8 mm); maximum cutting capacity up to 1/2 in. (12 mm).
• 220V Input: Ideal clean cut up to 1/2 in. (12 mm); maximum cutting capacity up to 5/8 in. (16 mm).

For the best cutting results, use the appropriate input voltage, air pressure, cutting speed, and consumables for the material thickness.

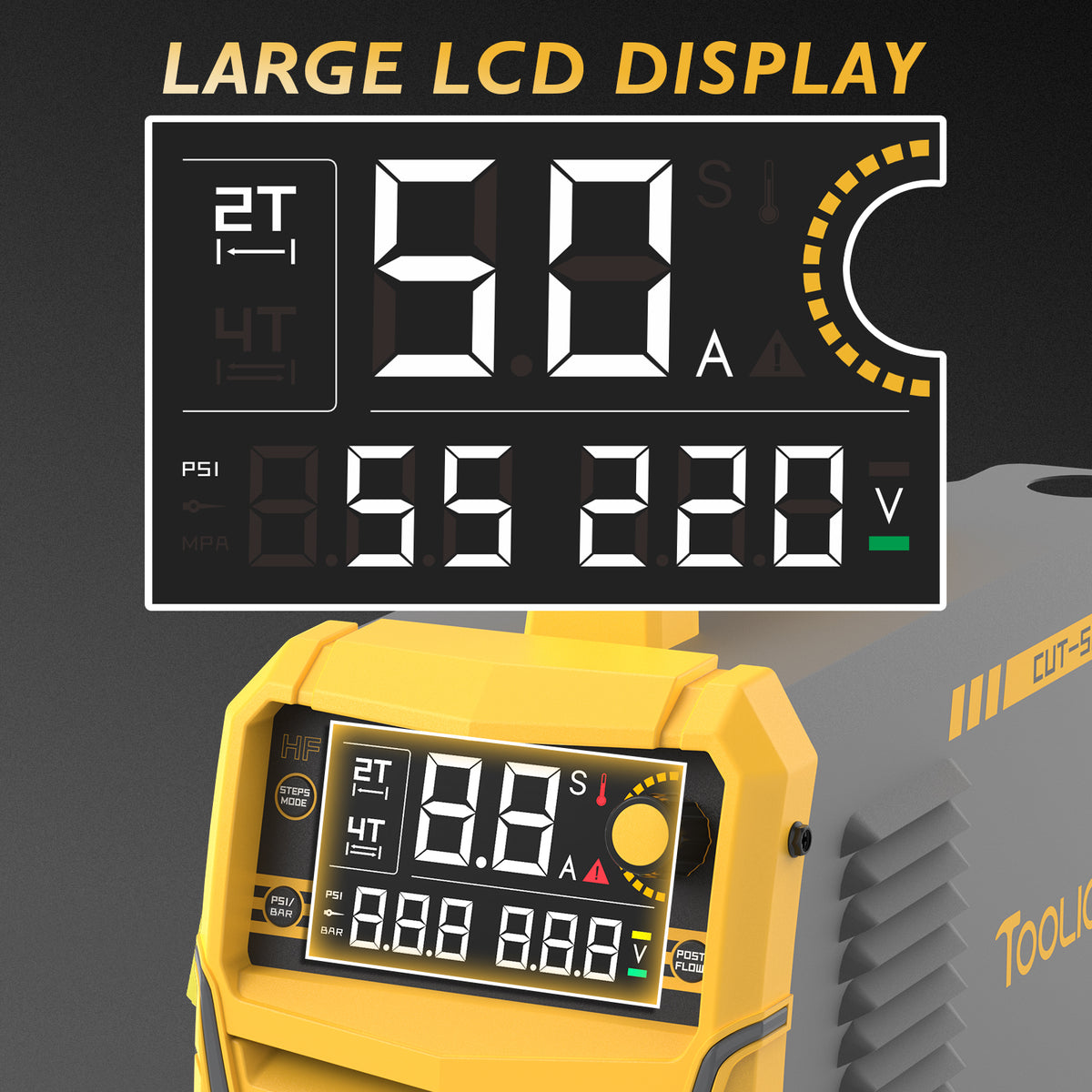

Large LCD Display and Error Code System

The large LCD display clearly shows key operating information, including air pressure, voltage, current, and other machine parameters. Real-time monitoring helps operators check equipment status and make timely adjustments during cutting.

If the plasma cutter cannot operate normally, the screen displays an error code to help users identify the problem more conveniently.

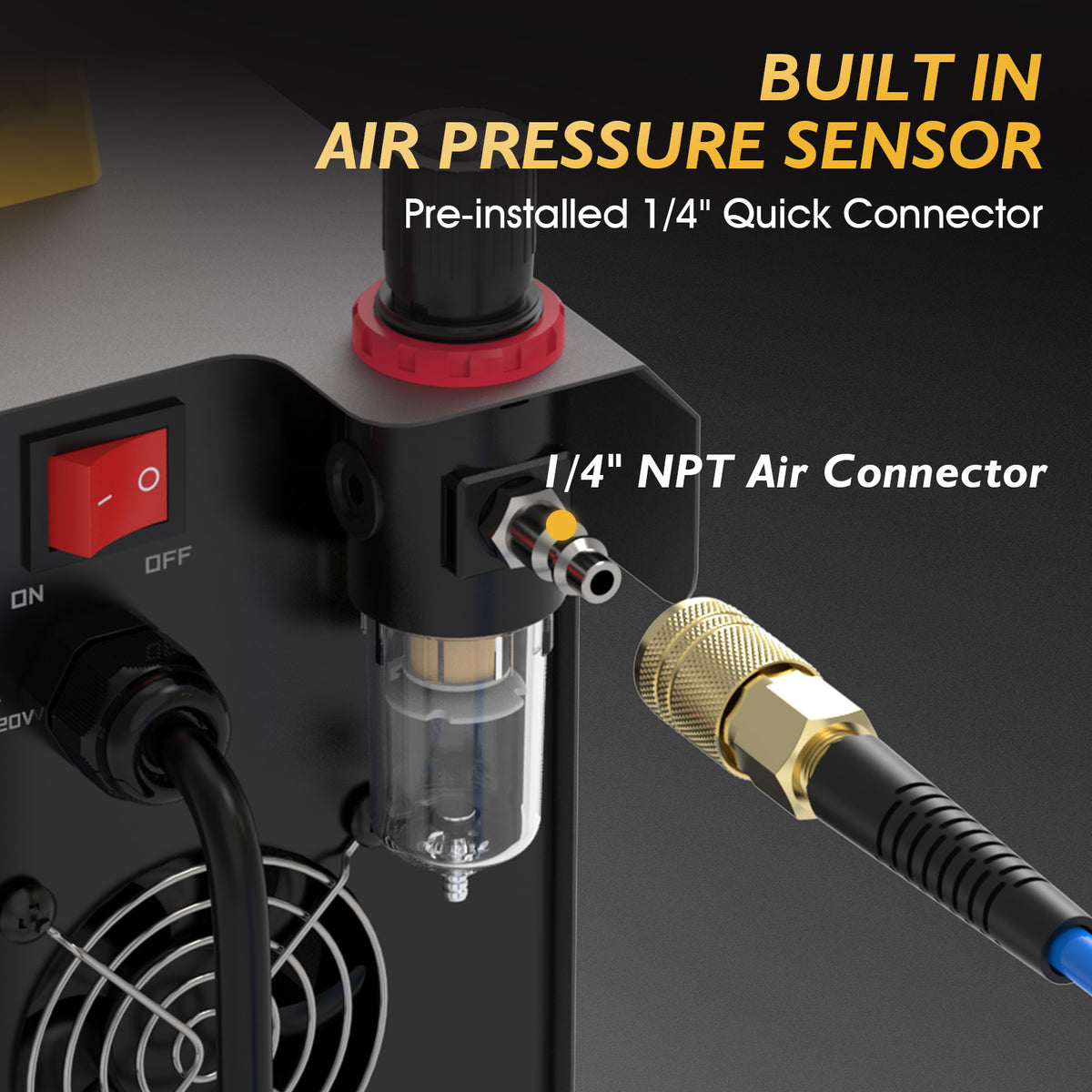

Built-In Air Sensor and Air Regulator

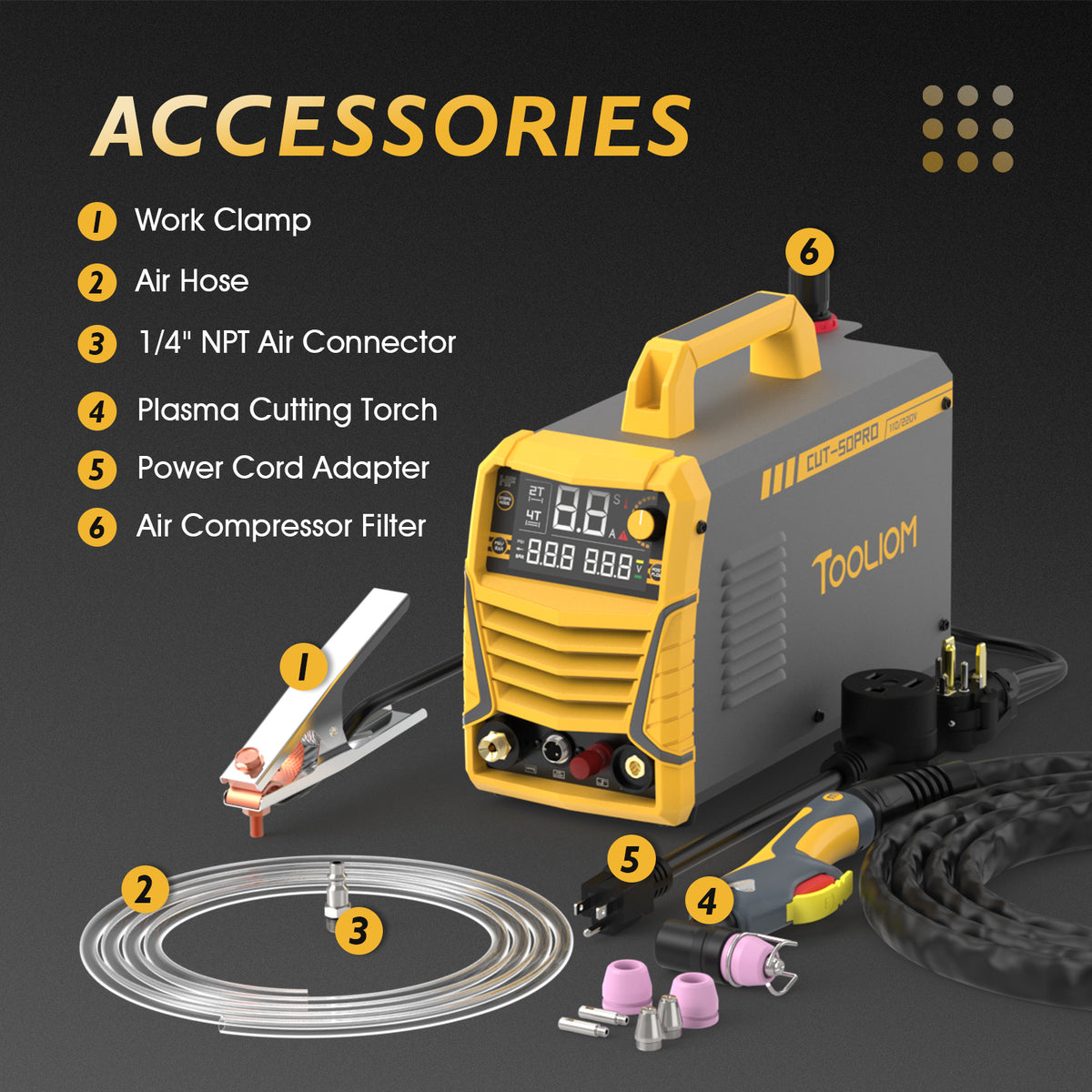

The built-in air sensor displays air pressure on the machine's front panel, making it easier to monitor the air supply during operation. The rear of the machine includes a 1/4 in. NPT quick-connect air connector, air filter fitting, and built-in air regulator for a convenient compressed-air setup.

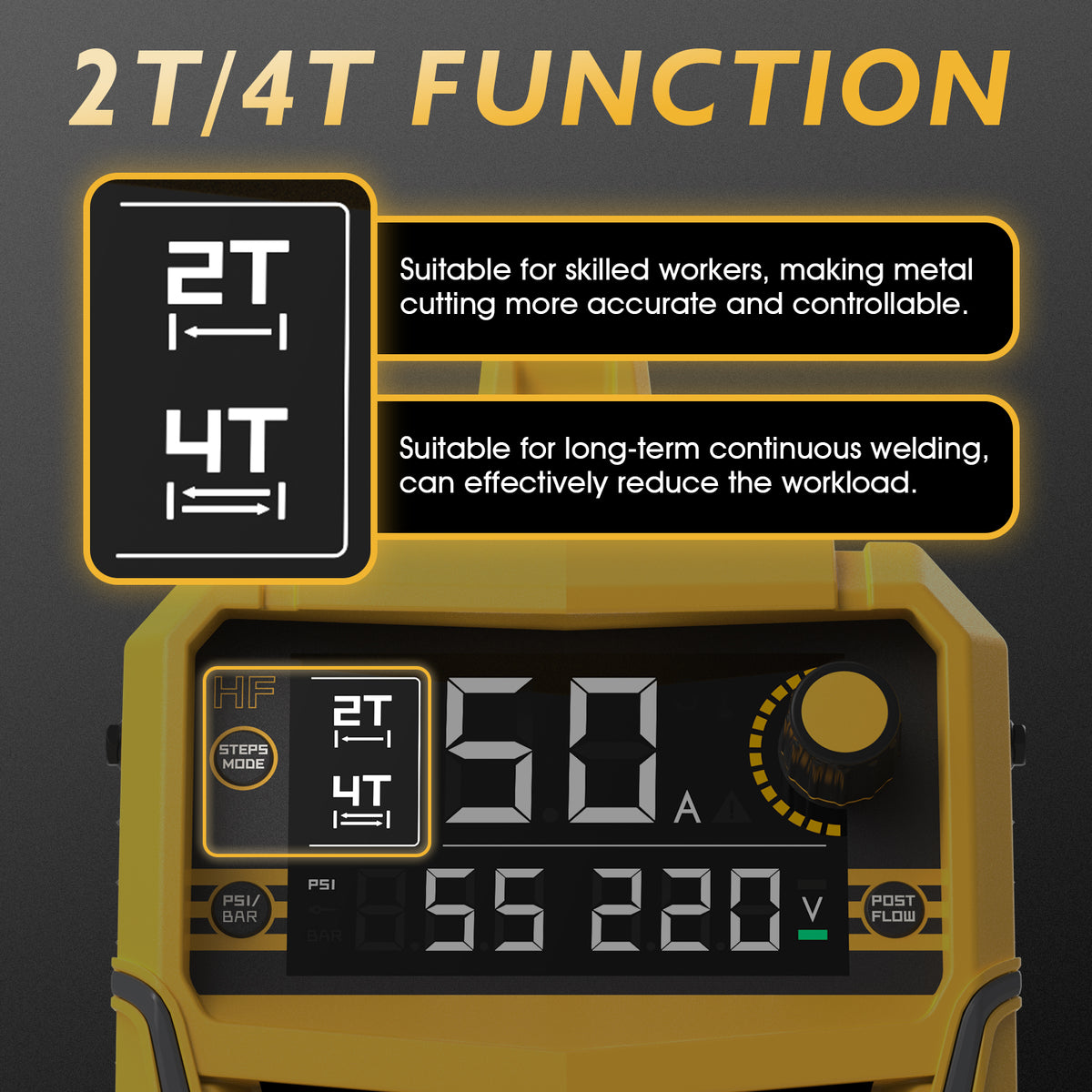

2T/4T Trigger Modes and Adjustable Post-Flow

Select between 2T and 4T modes based on your cutting needs:

• 2T Mode: Press and hold the torch trigger while cutting for semi-automatic cutting control.
• 4T Mode: Use automatic cutting control to reduce the need to continuously hold the torch trigger during longer cuts.

The adjustable post-flow time ranges from 5 to 20 seconds. This airflow helps cool the plasma torch after cutting and can help extend the service life of torch consumables.

Recommended Air Pressure

• 110V Input: Recommended air pressure: 60 PSI.
• 220V Input: Recommended air pressure: 65 PSI.

Key Features

• 50A air plasma cutter with 110V/220V dual-voltage input
• Advanced IGBT inverter technology
• Ideal clean cut up to 1/2 in. (12 mm) at 220V
• Maximum cutting capacity up to 5/8 in. (16 mm) at 220V
• Large LCD display for air pressure, voltage, current, and machine status
• Error code system for easier troubleshooting
• Built-in air sensor with front-panel pressure display
• Built-in air regulator, air filter fitting, and 1/4 in. NPT quick-connect air connector
• 2T and 4T cutting trigger modes
• Adjustable 5 to 20 second post-flow time

Specifications
