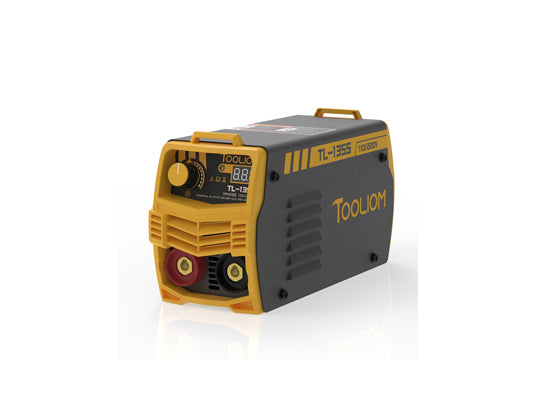

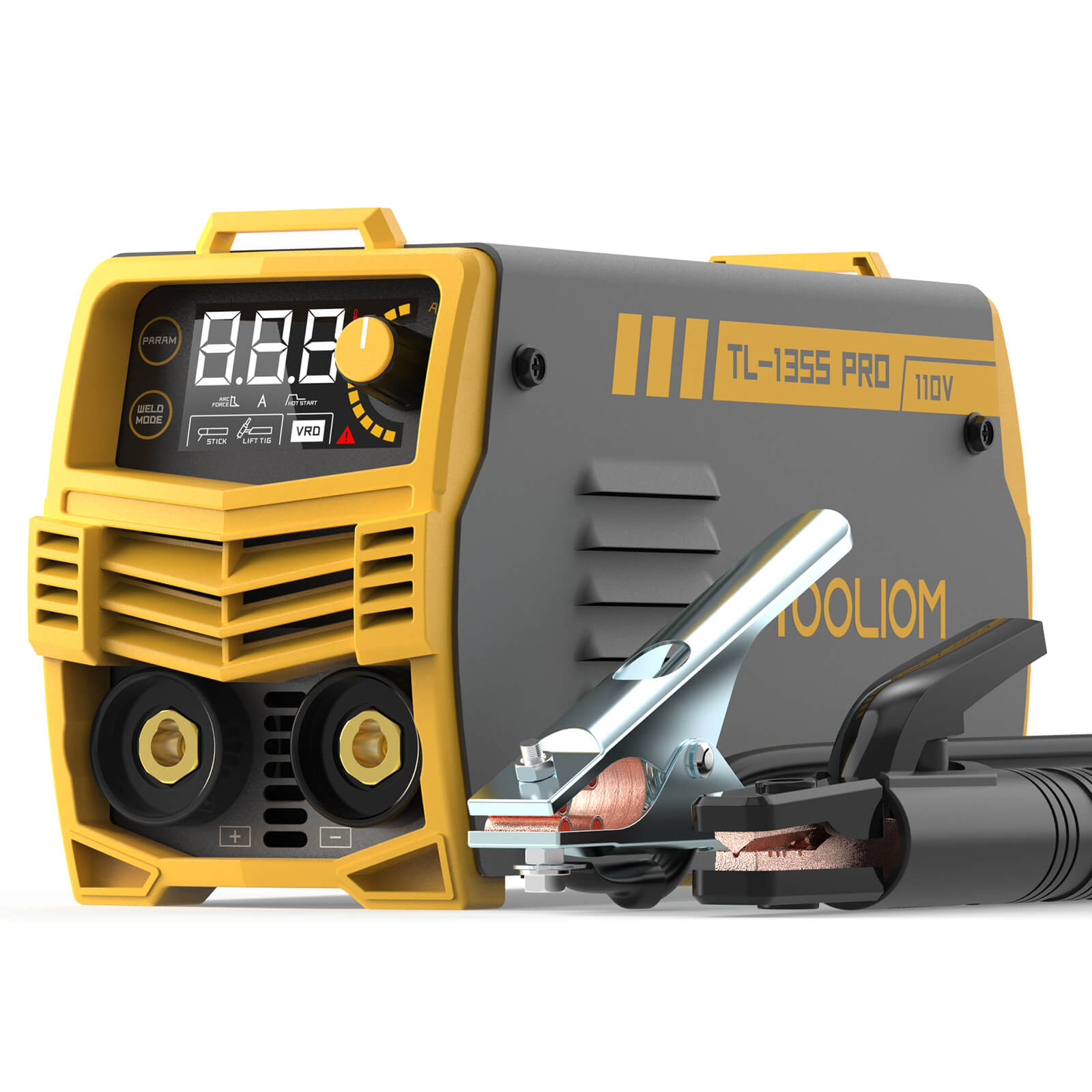

ARC Welder 135A Stick Welding Machine TL-135S TOOLIOM

ARC Welder 135A Stick Welding Machine TL-135S TOOLIOM

Regular price $99.99
Regular price Sale price $99.99
Sale Sold out
Shipping calculated at checkout.

SPECIFICATION

· Input Voltage: 110(120)V / 220(230)V

· Input Current: 25.5A(110V) / 17.8A(220V)

· Rated Duty Cycle:60%

· Protection Class:IP21S

· Insulation Class:F

· Output Voltage: 25.4V

· Output Current: 135A

· Net Weight: 4.84LB (2.2KG)

HIGHLIGHT FEATURES

1. Can handle E6010 cellulose electrode, adopting IGBT Inverter power system,suitable for mild steel, cast iron, stainless steel as well as hard surfacing.

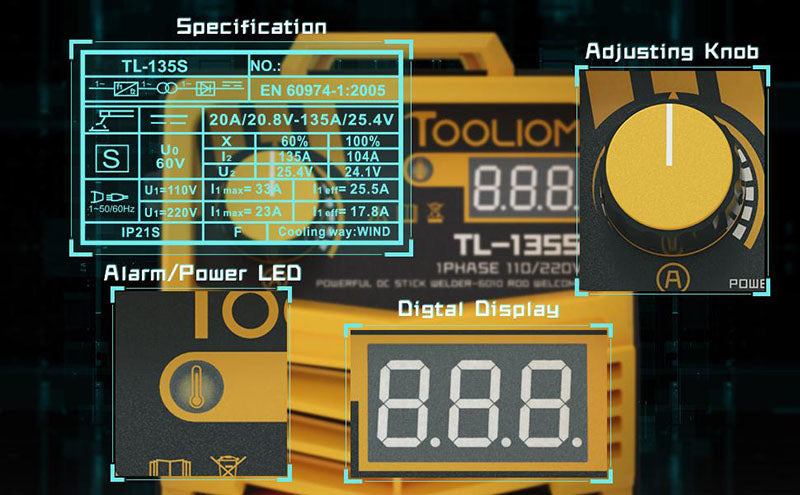

2. Equipped with digital display and trouble indicate,read the output welding current.

3. Built-in excellent anti-stick, arc force, hot start and other functions,easy to operate,safe and convenient for beginner.

4. Portable: With adjustable shoulder strap,is convenient to carry between job sites or use.

5. Dual voltage input design: Support 110V & 220V input voltage

SHIPPING & RETURNS & WARRANTY

Free return and replace within 30 days. We make sure you have enough time to explore the machine.

The average shipping time is 5 days.

We have warehouses located in southern California and northern Kentucky to manage all shipping and returns.

We cover all quality-related issues in two years and provide lifetime technical support for other problems

For orders made on Tooliom website only.

support@tooliom.com

View full details

ARC TL-135S

· Can handle E6010 cellulose electrode

· Built in hot start, anti-· stick,dig-arc force

· Portable design,mini size,easy to carry

· Support 110V & 220V input voltage

· Suitable for lift TIG (torch is not included)

· 60% duty cycle, high efficient welding

· Robust thrust, deep melton pool, and less splatter

· Lift TIG is optional(need buy extra tig lift torch,not included

Product Manual Download
  • Hot Start

    · Start arc easy and fast.High quality arc starting,reduce the probability of initial defects in the arc.

  • Dig-Arc force

    · Smoth arc on celloluse,make welding electrode welding smooth, not easy to break.

  • Anti-Stick

    · Safe and convenient for beginner,avoid sticking electrodes on work plate, affecting the quality and efficiency of welding

  • Handle cellulose electrode

    · E601: Locate the ground clamp with cable and connect the plug on the cable end to the Positive Connector (+) on the welder.(DCEN)

    · E6011/6013/ 7018: Locate the ground clamp with cable and connect the plug on the cable end to the Negative Connector (–) on the welder.(DCEP)

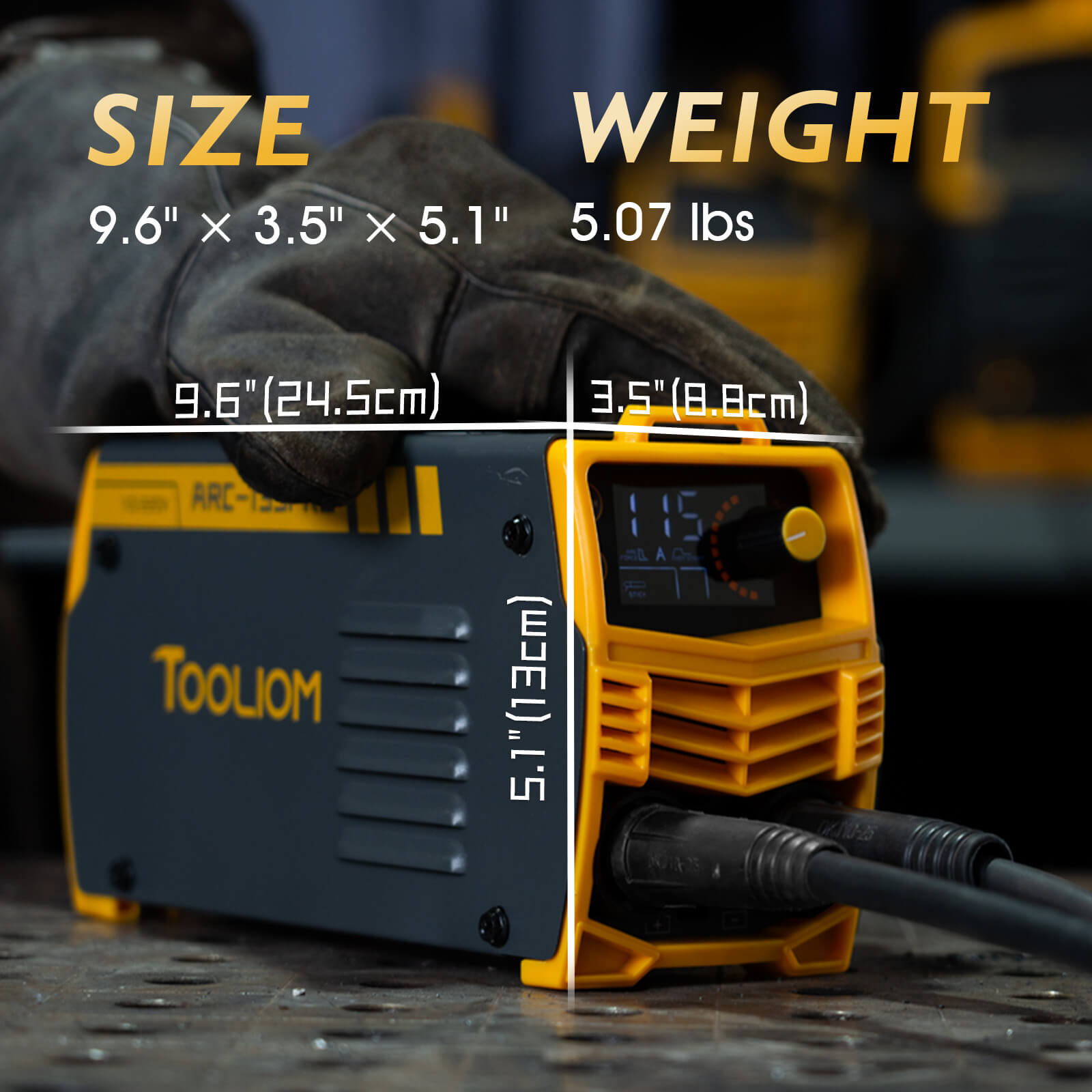

  • Compact / Light-Weight / Portable

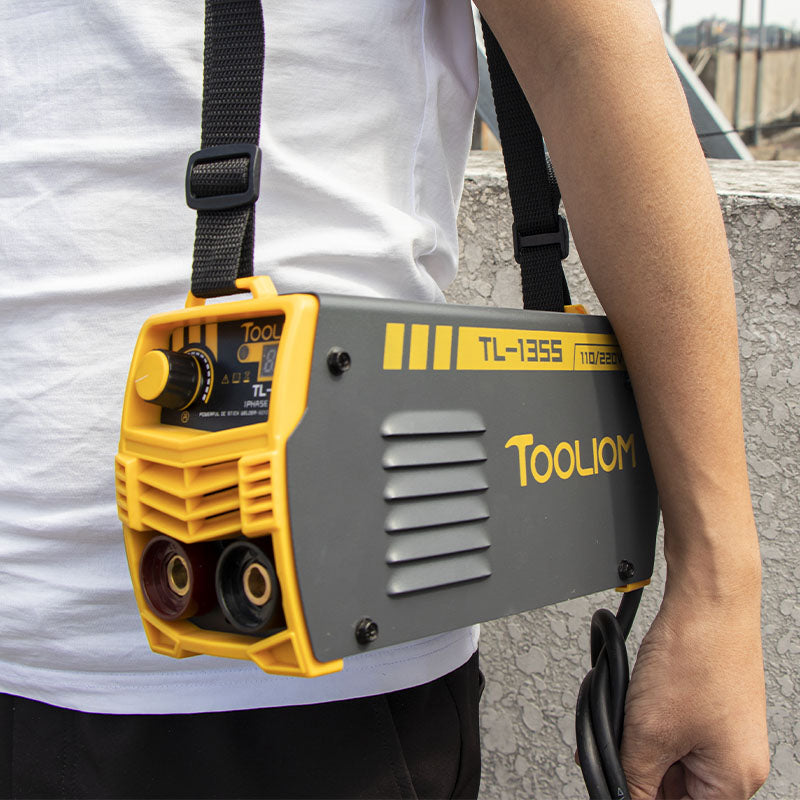

    · This stick welder come with adjustable shoulder strap,easy for translation and storage.

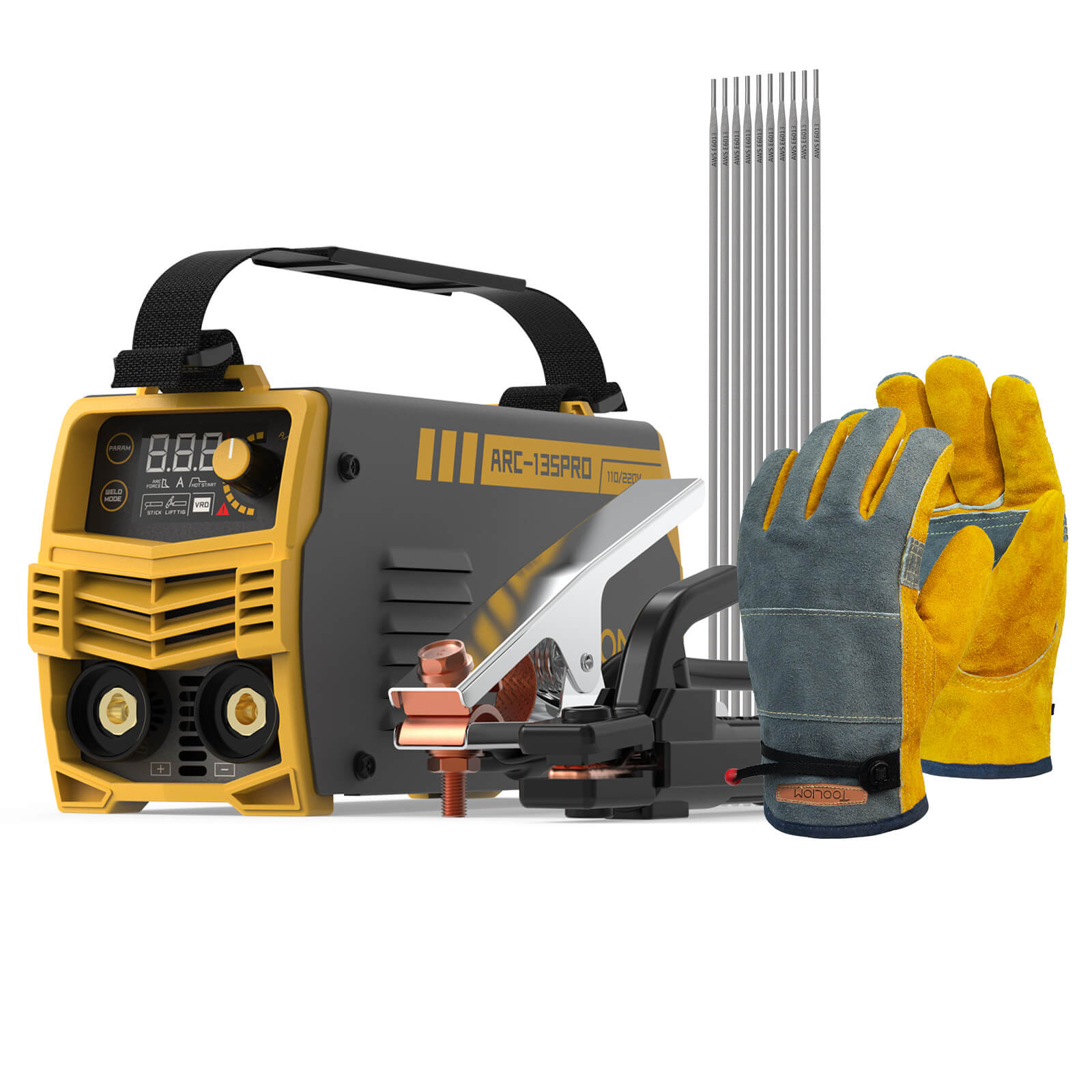

  • Package Included

    · 1 x MMA Welder
    · 1 x Electrode Holder & 10 feet Cable
    · 1 x Ground Clamp & 10 feet Cable
    · 1 x Power Adapter
    · 1 x User Manual
