TOOLIOM 250M Aluminum Multi-Process Welder MIG/Lift TIG/Stick 3 in 1

TOOLIOM 250M Aluminum Multi-Process Welder MIG/Lift TIG/Stick 3 in 1

Regular price $329.99
Regular price $399.99 Sale price $329.99
Sale Sold out
Shipping calculated at checkout.
Adjust to AC & DC

SPECIFICATION

  • Manufacturer: Tooliom
  • Item model number: ‎TL-250M
  • Item Weight: ‎35.1 pounds total
  • Package Dimensions: ‎21 x 18.25 x 14.25 inches
  • Include: MIG Welder, MIG Gun, Graphite Liner, Adapter Cord, Shielding Gas Hose, Ground Clamp, Electrode Holder, VDrive Roll

YOU WANT TO KNOW

  • Multi-functions in one machine, suitable for Gas MIG/Flux MIG/Stick/ Lift TIG.
  • Can weld aluminum ,compatible with a spool gun or MIG torch with graphite wire feed tube.
  • MIG synergistic setting & MIG manual setting, good choice for both novice and professional.
  • Can be used with various welding wire, .040" solid/flux/aluminum wire,035" solid/flux wire,030"solid/flux wire,024" solid wire.
  • Dual voltage input design: Welding machine can be plugged into 110/220V dual voltage (Automatic fitting).

SHIPPING & RETURNS & WARRANTY

Free return and replace within 30 days. We make sure you have enough time to explore the machine.

The average shipping time is 5 days.

We have warehouses located in southern California and northern Kentucky to manage all shipping and returns.

We cover all quality-related issues in one year and provide lifetime technical support for other problems

For orders made on Tooliom website only.

support@tooliom.com

View full details

Aluminum Welder TL-250M

  • Synergic setting: The wire feed speed and current will be auto fitted by input voltage.
  • Manual setting: The wire feed speed and current can adjust by welding data.
  • Can be used with spool gun or MIG gun with graphite wire feed tube.
  • Up to 250 A output that allows to weld mild steel up to 9/32 in plate.
  • Certificated by ETL: Intelligent protection includes over-voltage, over-current, over-heat protection.
  • 2T/4T Operation (2 steps or 4 steps of welding) and inductance(soft to hard on arc sparking)
  • Multi-functions

    ☑️ This MIG welder is capable of performing MIG (can weld aluminum) Stick and Lift TIG.

    ☑️ The lift TIG can't weld aluminum

  • WIRE FEEDER

    · AL .035" aluminum wire
    · 035" solid/flux wire
    · 030"solid/flux wire
    · 024" solid wire
    · the “V” type drive roll for Solid welding wire
    · the “W” type drive roll for Flux welding wire
    · the “U” type drive roll for Aluminum welding wire

  • Can weld Aluminum

    Welding using aluminum welding wire

    · the MIG gun have to install thegraphite wire feed tube

    · spool gun(not included)have to set therocker switch(that is at inner of the machine)

· Choosing welding modes, welding data, welding wire diameter, 2T/4T inductance by pressing the buttons
· Adjusting welding wire feed speed / current , welding voltage ,inductance by pressing the knob.
Voltage Knob:
1. Manual MIG: Welding voltage can be adjust from 10V to 26V.
2. Synergic MIG: Welding voltage will be auto fitted after the welding ampere is input, can micro adjust
from -5 to +5 (each value=0.6V, reduce 3V ~ add 3V)
Wire Speed / Current Knob:
1. Manual MIG: Wire feed speed can be adjust from 2m/min. to 15 m/min.
2. Synergic MIG: Welding current can be adjust from 35A to 250A.
3. MMA: Welding current can be adjust from 20A to 250A.
4. TIG: Welding current can be adjust from 10A to 250A.

  • Flux-Cored--(DCEN)

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.

  • MIG--(DCEP)

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder.

  • Lift TIG--(DCEP)

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.

  • STICK--(DCEP)

    · Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder.

  • Material

    · This MIG welder is particularly suitable for stainless steel, carbon, aluminum.

    · It is perfect for home DIY and general repairing work.

  • Installation Method

    · Big enough to handle 2 pounds (D100) and 10 pounds (D200) rolls of wire.

    · Weld up to .040" solid/flux/aluminum welding wire.

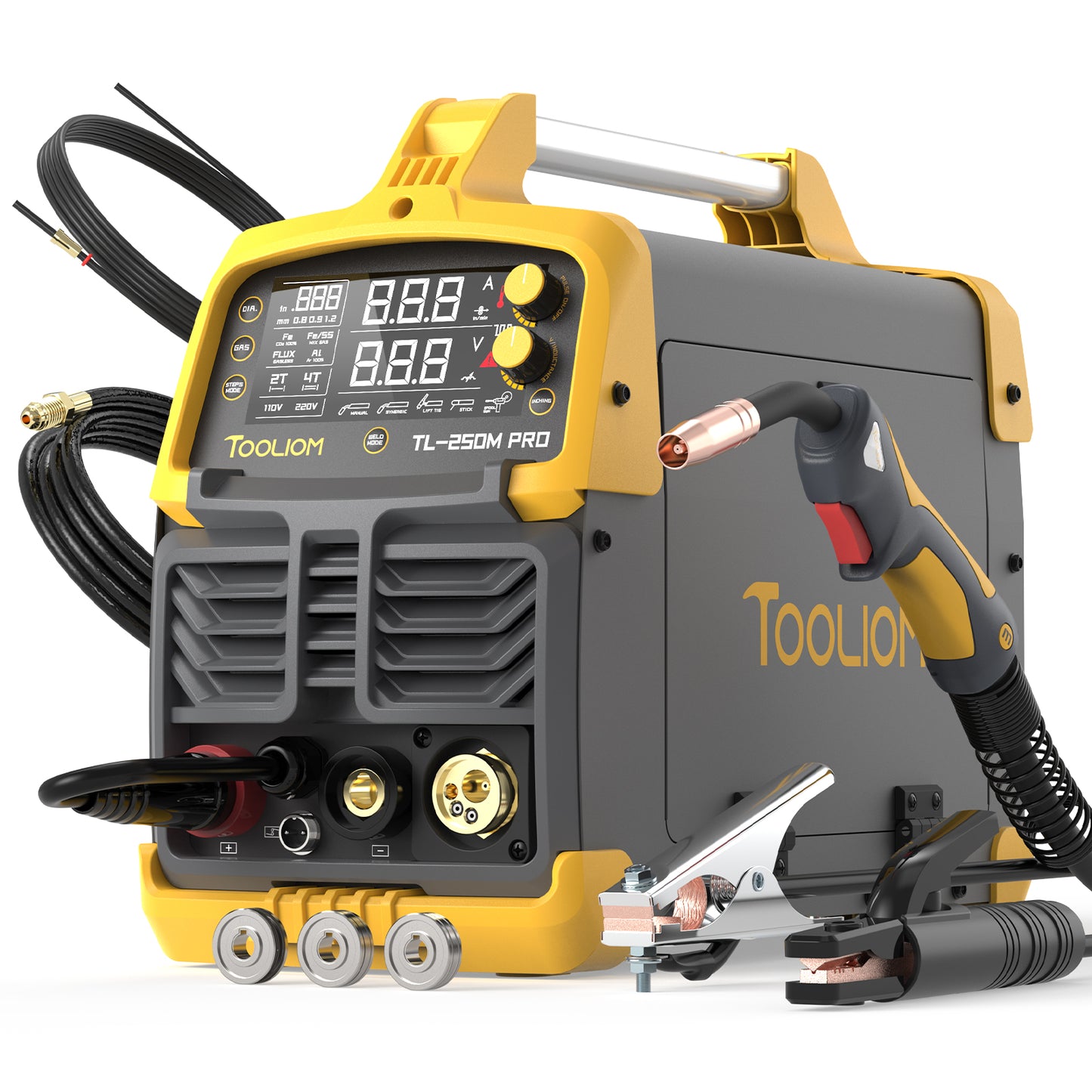

  • Package Included

    1. TL-250M MIG welder
    2. MIG Torch
    3. Graphite Liner
    4. Adapter Cord
    5. Shielding Gas Hose
    6. Ground Clamp
    7. Electrode Holder
    8. Drive Roll
